Applications

• • Building & Duct Static Pressure,
• • Filter Monitoring,
• • Air Flow Measurement,
• • Process Control,
• • Air Handlers,
• • Clean Rooms,
• • Isolation Rooms,
• • Data Centers,

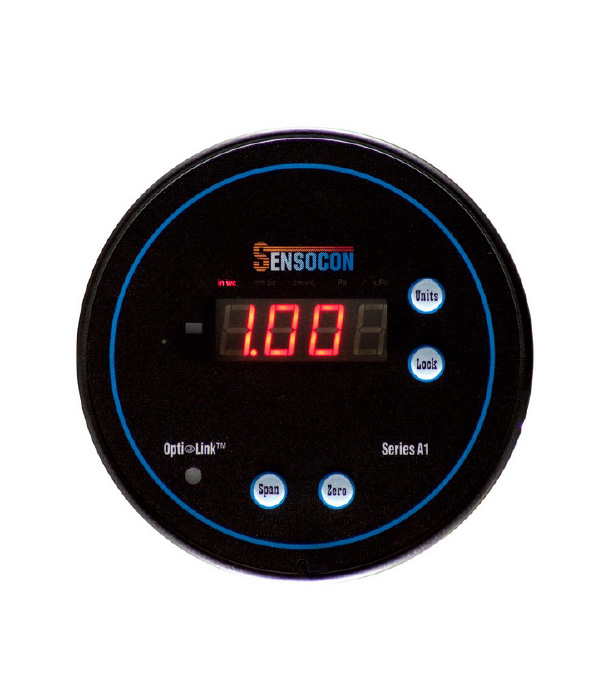

• The Series A1 digital differential pressure gauge is a patented microprocessor based digital pressure gauge for positive, negative, and differential measurement designed to be a direct replacement for mechanical gauges. The Series A1 differential pressure gauges utilize an extremely stable piezo resistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A1 is available with 0.5% or 0.25% accuracy. The A1 pressure gauge has an optional 4-20 mA output for applications requiring an output signal. The A1 features a bright ½" LED display, which gives the gauge improved readability and precision. The A1 digital differential pressure gauges also feature 5 user selectable engineering units including IN. W.C., MM W.C., CM W.C., kPa, and Pa. The Series A1 offers an improved look, and performance compared to mechanical gauges.
