Applications

• • Building & Duct Static Pressure,
• • Filter Monitoring,
• • Air Flow Measurement,
• • Very Low Pressure Applications,

Features

• • High Quality, Low-Cost
• • Visual Set Point Indication
• • Hassle-Free Field Adjustment Knob
• • 2% Repeatability

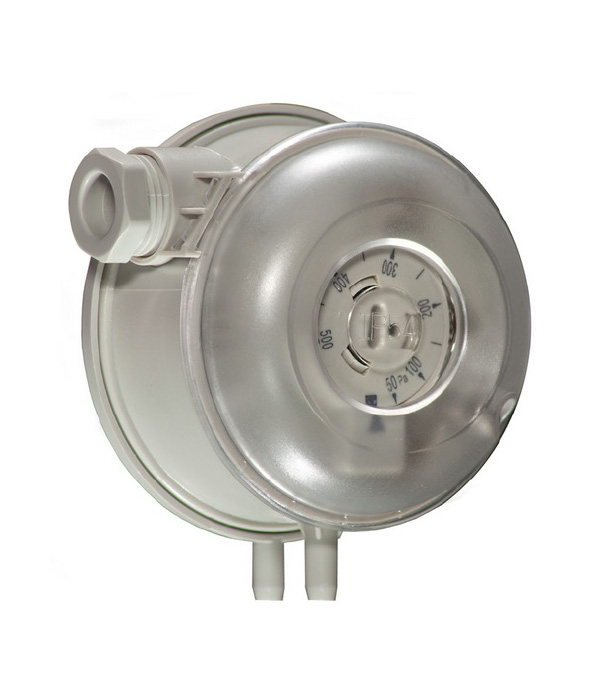

• The Series 104 Differential Pressure Switch is a low-cost easy to use differential pressure switch for very low pressure applications. The differential pressure switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for2A @ 250V and can be set as low as 0.08” W.C. (20 Pa).
