Applications

• • Energy Management,
• • Temperature Control,
• • Lighting Control Systems,
• • Fire Alarm,
• • Security,

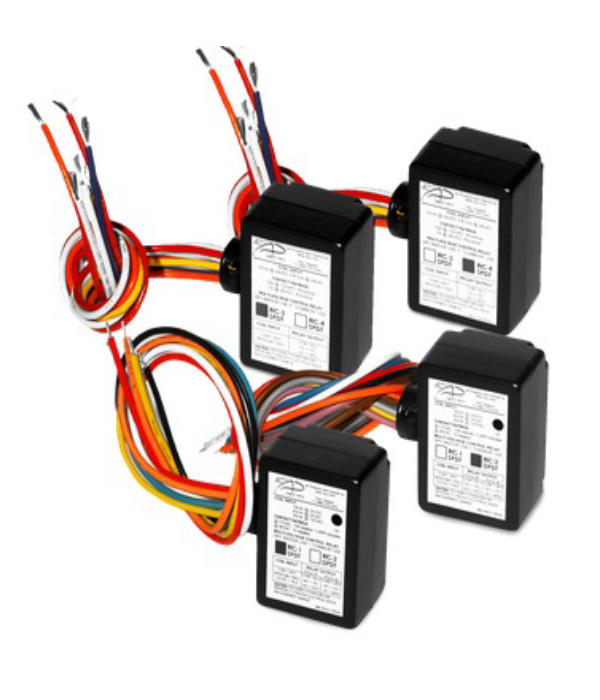

• The RIC-1 & RIC-2 Series Relays are multi-voltage devices providing form “C“ contacts rated for up to 10 amps. The relays may be energized by one of three input voltages: 24 VDC, 24 VAC, or 115 VAC. Each relay contains a red LED which indicates when the relay coil is energized. To mount the RIC-1 and RIC-2 place the spud through a 1/2 in. (12.7 mm) knockout on a junction box. The relays are also packaged with wire-nuts to aid installation. The RIC-1 and RIC-2 Relays are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, Temperature Control, Fire Alarm, Security, Energy Management and Lighting Control Systems. The RIC-3 Series relays are multi-voltage devices providing SPDT or form “C“ contacts rated for up to 10 Amps. The relays may be energized by one of two input voltages, 24 VDC or 24 VAC. The relays can withstand a momentary interruption of control voltage for 2 to 3 seconds without dropping their contacts. This feature makes them perfect for applications where pulsed or sequenced input voltage is employed, or where momentary control voltage interruption is expected. The RIC-3 is non-polarized on the DC control input. To mount the RIC-3, push the spud through a ½" (12.7 mm) knockout on a junction box. In addition to the redundant wire leads provided on the control voltage input, the relays are also packaged with wire-nuts to aid installation. The RIC-3 is ideal for applications where remote relays are required for control or status feedback. The RIC-3 is suitable for use with HVAC, Temperature Control, Fire Alarm, Security, Energy Management and Lighting Control Systems.

  RIC Series are covered by ACI's two (2) Year Limited Warranty, which is located in the front of ACI's Sensors & Transmitters catalog or can be found on ACI's web T
