PAM SERIES RELAYS
Applications
- • Temperature Control,
- • Lighting Control Systems,
- • Fire Alarm Security,
- • Building Automation Systems,
- • Energy Management,

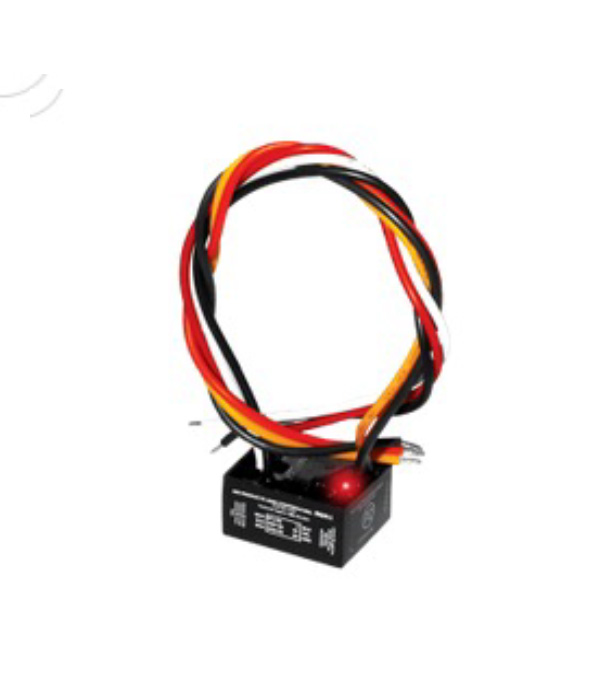

- The PAM Relays are encapsulated multi-voltage devices with “flying” leads that offer versatile, reliable performance in a convenient package. The PAM-1 and PAM-2 both have a red LED which indicates when the relay coil is energized. The PAM Relays are packaged with a self-tapping screw and a piece of double sided tape for easy installation almost anywhere. The relays are also packaged with wire-nuts to aid installation. PAM Relays are ideal for applications where remote relays are required for re alarm control or status feedback. They are only suitable for use within UL864 applications and installed in accordance with NFPA 70® and NFPA 72®. The PAM series of relay including the PAM-1 are marked for DRY INDOOR USE and are not intended or listed for use in any Marine or SIL rated applications which void the parameters of a dry indoor installation
PAM Relays are covered by ACI's two (2) Year Limited Warranty, which is located in the front of ACI's Sensors & Transmitters catalog or can be found on ACI's web site, which is: www.workaci.com.
| ITEM NUMBER | ITEM DESCRIPTION | LIST PRICE | VOC PRICE |
| PAM-1 | Multi-Voltage Control Relay, 24 VDC, 24 VAC, & 120 VAC, Form 1C (SPDT), LED | $12.33 | |
| PAM-2 | Multi-Voltage Control Relay, 12 VDC, 24 VDC, Form 1C (SPDT), LED | $12.33 | |
| PAM-3 | Multi-Voltage Control Relay, 9 to 40 VDC (19.3mA), Form 1A (SPST) | $12.33 | |
| PAM-4 | Multi-Voltage Control Relay, 12 to 40 VDC (20mA), Form 1C (SPDT) | $12.33 | |
| PAM-SD | Multi-Voltage Control Relay, 20 to 32 VDC, Form 1C (SPDT) | $12.33 | |
| PM-D | PM2.5, Duct Mount, 0-500u g/m3, 4-20 mA and 0-10 VDC, Modbus RS-485 | $200.28 | |
| PM-R | PM2.5, Room Mount, 0-500u g/m3, 4-20 mA and 0-10 VDC, Modbus RS-485 | $194.12 | |
| PM-R-LCD | PM2.5, Room Mount, 0-500u g/m3, Relay, LCD, 4-20 mA and 0-10 VDC, Modbus RS-485 | $203.36 |
