Applications

• • Level Indication,
• • Digital Output Expansion,
• • Alarms,
• • Staging & Sequencing,

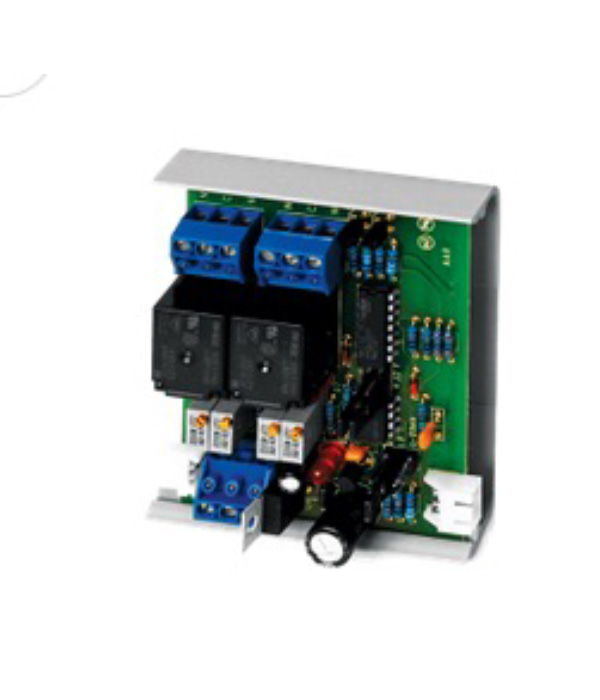

• The AAR is controlled by a single analog input signal with two potentiometers controlling each output relay. The two 10 amp output relays can be independently set to fi¬xed or adjustable dead-band. “Fixed”, the relay will turn “ON” at the level set by the Low pot and will turn “OFF” at a fi¬xed 3% of the input signal below the turn-on level. “Adjustable” allows a flexible range of dead-band adjustment using both the High and Low potentiometer. The edge-connector feature allows signal and power connections to be extended to the next board. This allows the installer to wire the fi¬rst unit, then slide additional units together by plugging into a power, and signal bus without the need to strip and terminate additional wires. The AAR can be fi¬eld calibrated, however, factory calibration is available upon request for an additional charge. Relay trip points can be factory calibrated, saving installation time and expense.

  AAR Series are covered by ACI's two (2) Year Limited Warranty, which is located in the front of ACI's Sensors & Transmitters catalog or can be found on ACI's web site, which is: www.workaci.com.
