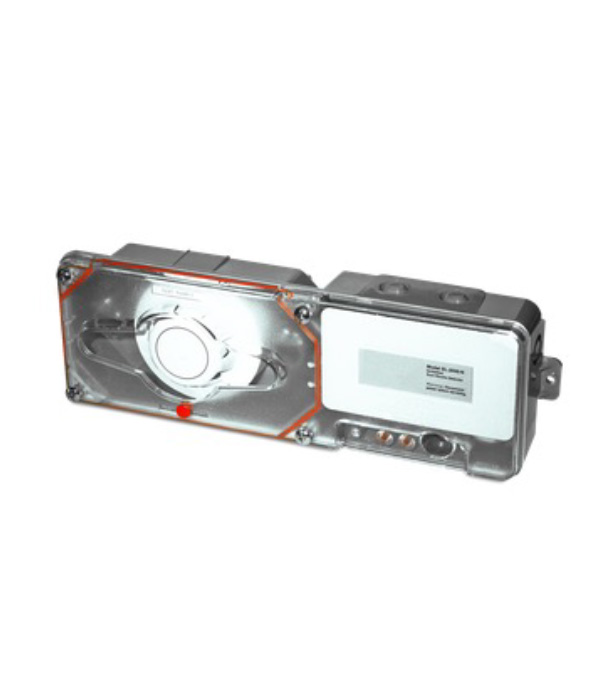

SL-2000 SMOKE DETECTORS
Applications
- • Smoke Detection in HVAC Ducts,
- • Commercial,
- • Industrial,
- • Residential Systems
- The SL-2000 series duct smoke detectors will provide early detection of smoke and products of combustion present in the air moving through HVAC ducts in any commercial, industrial, or residential application. These devices are designed for the prevention of smoke re-circulation by the air handling systems, fans, and blowers. The SL-2000 is designed and built to meet all local requirements, as well as the NFPA regulations, regarding duct smoke detectors. Output terminals are provided for remote accessories such as horns, strobes, remote status indicators, and test/reset key switches or pushbuttons. The Ionization and Photoelectric detector heads are interchangeable and air sampling is accomplished via two tubes that protrude into the duct. An exhaust tube with a standard length of 7" is supplied in the installation kit with the unit. Once the duct size is determined, a sampling tube should be ordered. Three standard sizes including a 1', 2.5', 5', and 10' lengths can be ordered and cut to the correct size of the duct. The SL-2000 provides two sets of 10A form "C" and one set of a 2A form "A" alarm contacts, along with one set of 10A form "C" trouble contacts for monitoring head removal and supply voltage failure. The ACI remote accessories are designed to be used with the ACI Duct Smoke detectors to provide audible and visual indication as well as remote test/rest functions. These devices mount to a standard single or double gang electrical back box. Remote accessories are usually required by the AHJ (Inspector) for installation. If a duct smoke detector is not wired to a ¬re system or a remote test station, when the unit goes into alarm, the end user would have to climb up to the duct to manually reset the unit. ACI offers two series of remote accessories, The MS Series and the MSR-50R Series.
The SL-2000 Series are covered by ACI's two (2) Year Limited Warranty, which is located in the front of ACI's Sensors & Transmitters catalog or can be found on ACI's web site, which is: www.workaci.com.
| ITEM NUMBER | ITEM DESCRIPTION | LIST PRICE | VOC PRICE |
| SL-2000-N | Smoke Detector, Multi-Application, Ionization | $124.48 | |
| SL-2000-P | Smoke Detector, Multi-Application, Photoelectric | $124.48 | |
| SAMPLING TUBE ORDERING | |||
| STN-1.0' | Sampling Tube for SL-2000, 1.0' | $6.16 | |
| STN-10.0' | Sampling Tube for SL-2000, 10.0' | $16.95 | |
| STN-2.5' | Sampling Tube for SL-2000, 2.5' | $8.01 | |
| STN-5.0' | Sampling Tube for SL-2000, 5.0' | $10.48 | |
| ACCESSORIES ORDERING | |||
| WP-2000 ENCLOSURE | Weatherproof Enclosure, NEMA type 3R | $104.76 | |
| 55000-225APO | REPLACEMENT HEAD FOR A/SM-501N | $70.87 | |
| 55000-328APO | REPLACEMENT HEAD FOR SL-2000-P | $73.95 | |
| TG-2000 | TEST SMOKE SL-2000 TEST PORT | $23.42 | |
| REMOTE ACCESSORIES ORDERING | |||
| MSR-50RK/R | Remote with Key Test/Reset, Red Single Gang Plate | $49.30 | |
| MSR-50RK/W | STROBE&SOUNDER CLR LENS WHT PL | $49.30 | |
| MSR-50RKA/R | Remote with Key, Sounder, Red Double Gang Plate | $90.59 | |
| MSR-50RKA/W | Remote with Key, Sounder, White Double Gang Plate | $98.60 | |
| MSR-50RKAV/R/C | STROBE & SOUNDER CLR LENS RED PL | $141.74 | |
| MSR-50RKAV/W/C | Remote with Key, Strobe, Sounder, White Double Gang Plate | $141.74 | |
| MS-KA/P/R | (2) LEDs, Key Test/Reset, Single Gang SS Plate | $58.54 | |
| MS-KA/R | (1) LED, Key Test/Reset, Single Gang SS Plate | $55.46 |
