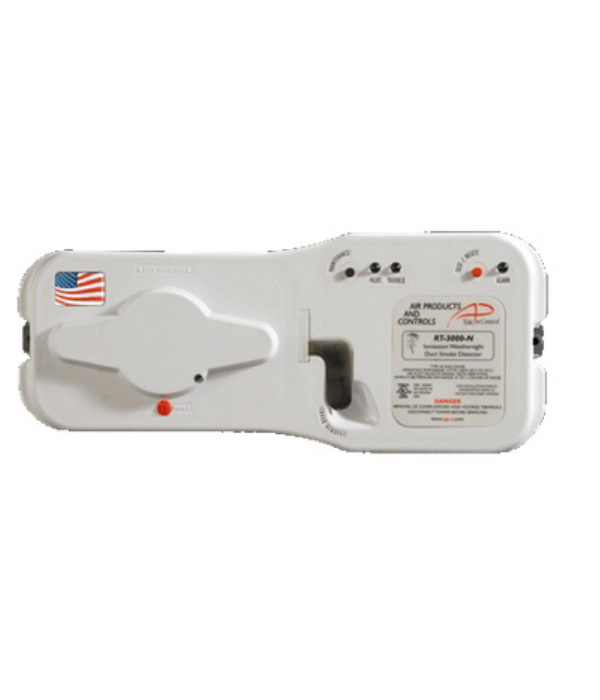

RT–3000 SMOKE DETECTORS
Applications
- • Smoke Detection in HVAC Ducts,
- • Commercial,
- • Industrial,
- • Residential Systems
- The RT-3000 is designed to be an installer and servicer friendly product line. It signifi-cantly reduces the total cost of ownership versus other comparable products. It offers a host of “No-Tools Required” features, as well as a multi-application performance level unmatched in the industry. Duct smoke detectors are designed to prevent the recirculation of smoke in areas by air handling system’s fans and blowers. The RT-3000 is designed and built to meet all local requirements, as well as the NFPA regulations, regarding duct smoke detectors. Output terminals are provided for remote accessories such as horns, strobes, remote status indicators, and test/reset key switches or pushbuttons. Air sampling is accomplished via two tubes that protrude into the duct. An exhaust tube with a standard length of 7" is supplied in the installation kit with the unit. Once the duct size is determined, a sampling tube should be ordered. Three standard sizes including a 2.5', 5', and 10' lengths can be ordered and cut to the correct size of the duct. The weathertight NEMA 4X rated corrosion resistant enclosure coupled with extended temperature listings allow installation in the widest possible range of indoor/outdoor environments. The RT-3000 can be installed in either horizontal or vertical confi¬gurations to match installation preferences. The ACI remote accessories are designed to be used with the ACI Duct Smoke detectors to provide audible and visual indication as well as remote test/rest functions. These devices mount to a standard single or double gang electrical back box. Remote accessories are usually required by the AHJ (Inspector) for installation. If a duct smoke detector is not wired to a ¬re system or a remote test station, when the unit goes into alarm, the end user would have to climb up to the duct to manually reset the unit. ACI offers two series of remote accessories, The MS Series and the MSR-50R Series
The RT-3000 Series are covered by ACI's two (2) Year Limited Warranty, which is located in the front of ACI's Sensors & Transmitters catalog or can be found on ACI's web site, which is: www.workaci.com.
| ITEM NUMBER | ITEM DESCRIPTION | LIST PRICE | VOC PRICE |
| RT-3000-N | Smoke Detector, Multi-Application, NEMA 4X, Ionization | $200.28 | |
| RT-3000-P | Smoke Detector, Multi-Application, NEMA 4X, Photoelectric | $200.28 | |
| SAMPLING TUBE ORDERING | STN-1.0' | Sampling Tube for SL-2000, 1.0' | $6.16 |
| STN-10.0' | Sampling Tube for SL-2000, 10.0' | $16.95 | |
| STN-2.5' | Sampling Tube for SL-2000, 2.5' | $8.01 | |
| STN-5.0' | Sampling Tube for SL-2000, 5.0' | $10.48 | |
| ACCESSORIES ORDERING | |||
| 55000-225APO | REPLACEMENT HEAD FOR A/SM-501N | $70.87 | |
| 55000-328APO | REPLACEMENT HEAD FOR SL-2000-P | $73.95 | |
| TG-2000 | TEST SMOKE SL-2000 TEST PORT | $23.42 | |
| REMOTE ACCESSORIES ORDERING | |||
| MSR-50RK/R | Remote with Key Test/Reset, Red Single Gang Plate | $49.30 | |
| MSR-50RK/W | STROBE&SOUNDER CLR LENS WHT PL | $49.30 | |
| MSR-50RKA/R | Remote with Key, Sounder, Red Double Gang Plate | $90.59 | |
| MSR-50RKA/W | Remote with Key, Sounder, White Double Gang Plate | $98.60 | |
| MSR-50RKAV/R/C | STROBE & SOUNDER CLR LENS RED PL | $141.74 | |
| MSR-50RKAV/W/C | Remote with Key, Strobe, Sounder, White Double Gang Plate | $141.74 | |
| MS-KA/P/R | (2) LEDs, Key Test/Reset, Single Gang SS Plate | $58.54 | |
| MS-KA/R | (1) LED, Key Test/Reset, Single Gang SS Plate | $55.46 |
