HUMIDITY - TEMP WALL

Blog Article Figure
Key Points
  • • Available with analog outputs or protocol for BACnet RS-485
  • • Integrated set-point relay
  • • Optional field replaceable RH elements
  • • LCD with cover included
Applications
  • • Controlling ventilation in response to occupancy
  • • Facilitating compliance with ASHRAE 62.1 standard for air quality
  • • Offices, conference rooms, and public assembly areas

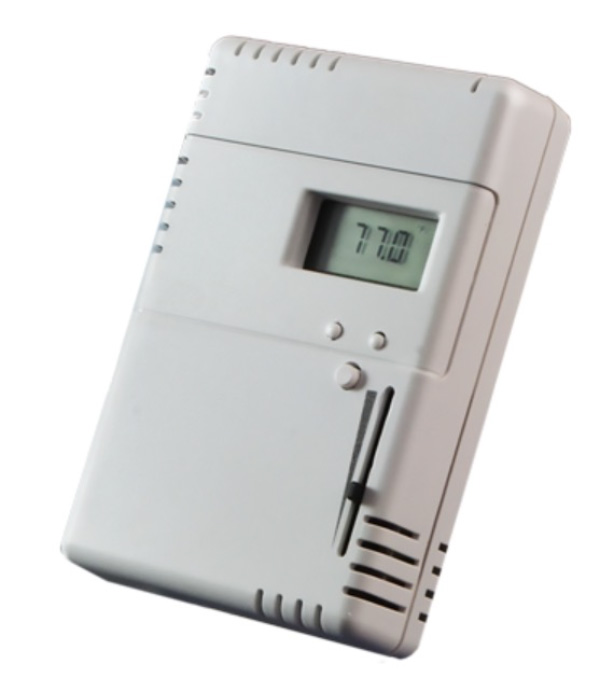

  • The AQW series design allows customization for a sensor that meets project requirements for monitoring temperature, CO2 and relative humidity. The sensor can be ordered as standalone temperature, CO2/Temp, RH/Temp or all-in-one CO2/RH/Temp with a 0-5/10V analog or BACnet RS485 output. Lower material costs and installation time by combining multiple sensors into a single sensor housing with standard LCD and optional add-on features.
MODEL DESCRIPTION  LIST PRICE VOC PRICE
AQW-AABAAA1 AQW, ANALOG, TEMP, 2% RH $300.00 $145.00
AQW-AABAAD1 AQW, ANALOG, TEMP, 2% RH , 1000PT (385) RTD $315.00 $152.25
AQW-AABAAE1 AQW, ANALOG, TEMP, 2% RH , 10K2 THERMISTOR $315.00 $152.25
AQW-AABAAF1 AQW, ANALOG, TEMP, 2% RH , 10K3 THERMISTOR $315.00 $152.25
AQW-AABAAG1 AQW, ANALOG, TEMP, 2% RH, 10K3  THERMISTOR WITH 11K SHUNT $315.00 $152.25
AQW-AABAAK1 AQW, ANALOG, TEMP, 2% RH , 20K THERMISTOR $315.00 $152.25
AQW-AABABE1 AQW, ANALOG, TEMP, 2% RH, 10K2  THERMISTOR, OVERRIDE $324.00 $156.60
AQW-AABABF1 AQW, ANALOG, TEMP, 2% RH, 10K3  THERMISTOR, OVERRIDE $324.00 $156.60
AQW-AABABK1 AQW, ANALOG, TEMP, 2% RH, 20K  THERMISTOR, OVERRIDE $324.00 $156.60
AQW-AABACK1 AQW, ANALOG, TEMP, 2% RH, 20K  THERMISTOR, PUSH BUTTON $324.00 $156.60
AQW-AABBAA1 AQW, ANALOG, TEMP, 2% RH SLIDER $324.00 $130.30
AQW-AABBAE1 AQW, ANALOG, TEMP, 2% RH, 1K  SLIDER, 10K2 THERMISTOR $336.00 $162.40
AQW-AABBBE1 AQW, ANALOG, TEMP, 2% RH, 1K  SLIDER, 10K2 TH WITH OVERRIDE $345.00 $166.75
AQW-AABBBF1 AQW, ANALOG, TEMP, 2% RH, 1K,  SLIDER, 10K3 TH, OVERRIDE $345.00 $166.75
AQW-AABBBG1 AQW, ANALOG, TEMP, 2% RH, 1K  SLIDER, 10KW/11K TH, OVERRIDE $345.00 $166.75
AQW-AABBCA1 AQW, ANALOG, TEMP, 2% RH , 1K SLIDER, PUSH BUTTON $330.00 $159.50
AQW-AABCAE1 AQW, ANALOG, TEMP, 2% RH, 10K  SLIDER, 10K TYPE 2 THERMISTOR $336.00 $162.40
AQW-AABCAF1 AQW, ANALOG, TEMP, 2% RH, 10K  SLIDER, 10K TYPE 3 THERMISTOR $336.00 $162.40
AQW-AABCBE1 AQW, ANALOG, TEMP, 2% RH, 10K  SLIDER, 10K2 TH W/ OVERRIDE $345.00 $166.75
AQW-AABCBF1 AQW, ANALOG, TEMP, 2% RH, 10K  SLIDER, 10K3 TH, OVERRIDE $345.00 $166.75
AQW-AABCCE1 AQW, ANALOG, TEMP, 2% RH,  10K SLIDER, PUSH BUTTON, 10K2 $345.00 $166.75
AQW-AABTAA1 AQW, ANALOG, TEMP, 2% RH, 200- 900 SLIDER $336.00 $166.75
AQW-AABTAE1 AQW, ANALOG, TEMP, 2% RH, 200- 900 SLIDER, 10K2 THERMISTOR $336.00 $166.75
AQW-AABTBE1 AQW, ANALOG, TEMP, 2% RH, 200- 900 SLIDER, 10K2 TH W/OVERRIDE $345.00 $166.75
AQW-BABAAA1 AQW, BACNET, TEMP, 2% RH $360.00 $174.00
AQW-BABAAD1 AQW, BACNET, TEMP, 2% RH $375.00 $181.25
AQW-BABACA1 AQW, BACNET, TEMP, 2% RH , PUSH BUTTON $369.00 $178.35
AQW-BABCBE1 AQW, BACNET, TEMP, 2% RH , SLIDER, PUSH BUTTON, 10K TH $390.00 $188.50
