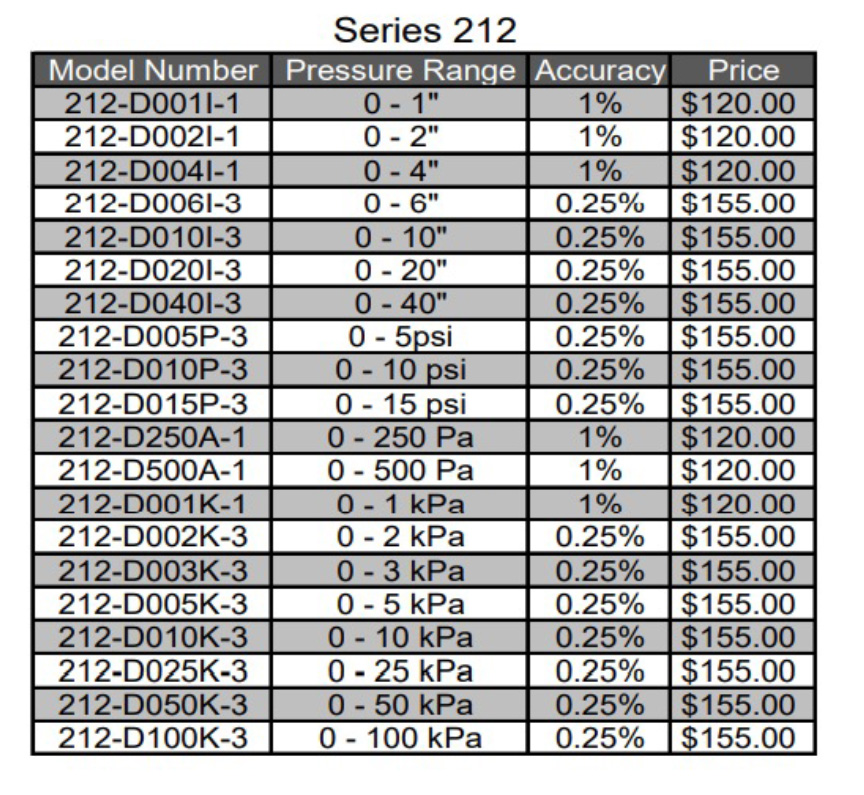

SERIES 212 – DIFFERENTIAL PRESSURE TRANSMITTER
Applications
- • Building & Duct Static Pressure,
- • Filter Monitoring,
- • Air Flow Measurement,
- • Process Control,
- • Air Handlers,
- • Clean Rooms,
- • Isolation Rooms,
- • Data Centers,
- • Paint Booths,
- • Dust Collectors,
Features
- • Weatherproof

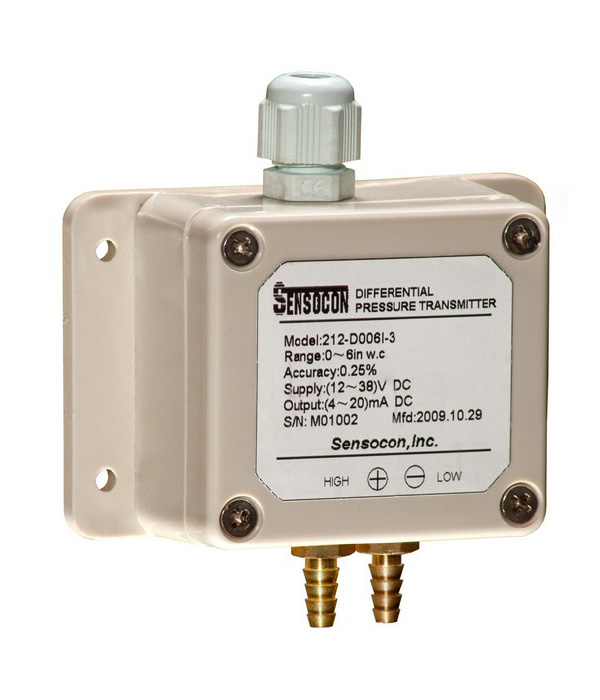

- The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a corresponding 4-20 mA or 0-10 V output signal. The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
